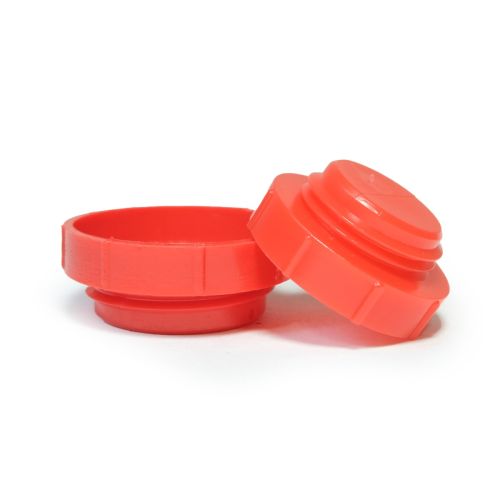

PT Series Knurled Head NPT Threaded Plugs
Only %1 left
SKU
FME-PT
Knurled head design allows for the user to install or remove these by hand with ease. Used to protect NPT threads against contaminants and moisture.
Material: High-Density Polyethylene
Color: Red

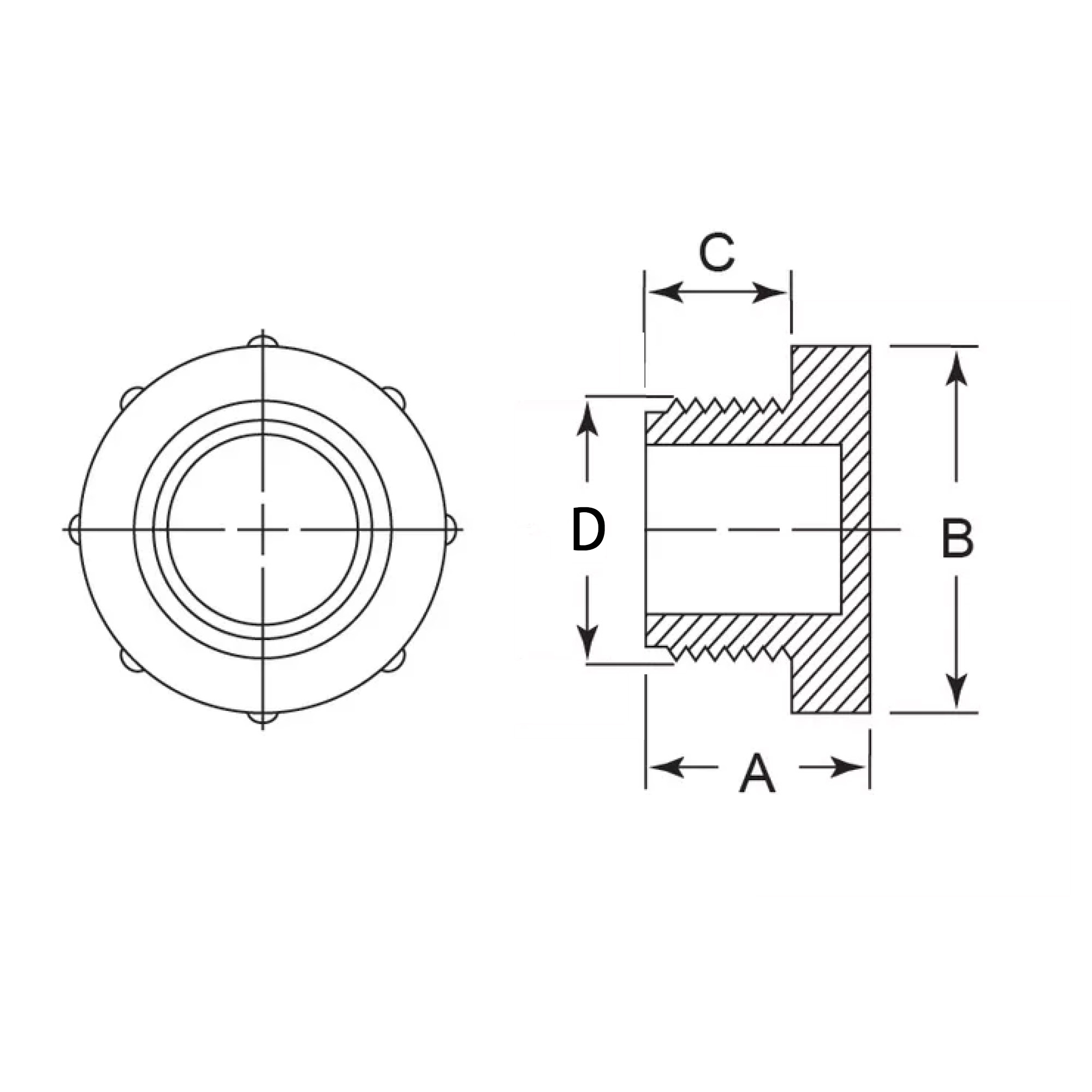

| Part No. | To Fit Thread Size (NPT) | A | B | C | D |
|---|---|---|---|---|---|
| FME-PT1/4 | 1/4in | 0.5in (13mm) | 0.725in (18mm) | 0.225in (6mm) | 0.44in (11mm) |
| FME-PT3/8 | 3/8in | 0.475in (12mm) | 0.9in (23mm) | 0.225in (6mm) | 0.585in (15mm) |
| FME-PT1/2 | 1/2in | 0.5in (13mm) | 1.12in (28mm) | 0.25in (6mm) | 0.7in (18mm) |
| FME-PT3/4 | 3/4in | 0.5in (13mm) | 1.3in (33mm) | 0.25in (6mm) | 0.94in (24mm) |
| FME-PT1 | 1in | 0.5in (13mm) | 1.563in (40mm) | 0.25in (6mm) | 1.18in (30mm) |
| A | 112344 |
|---|
