UN Series
Only %1 left
SKU
UN Series 1

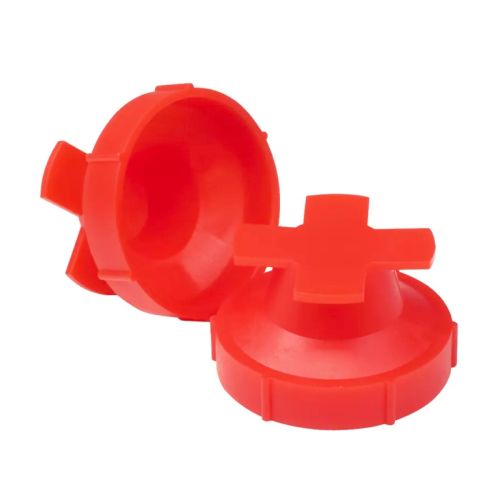

Quick Fit Plugs for Standard/JIC/Metric/BSP Threads. This uniquely-designed range of plugs have sets of blades which will lock tight when pushed into a threaded hole and twisted. Each plug covers a range of different thread sizes and styles. Easily removes by simply unscrewing the plug from the thread.
Material: Low-Density Polyethylene
Color: Red

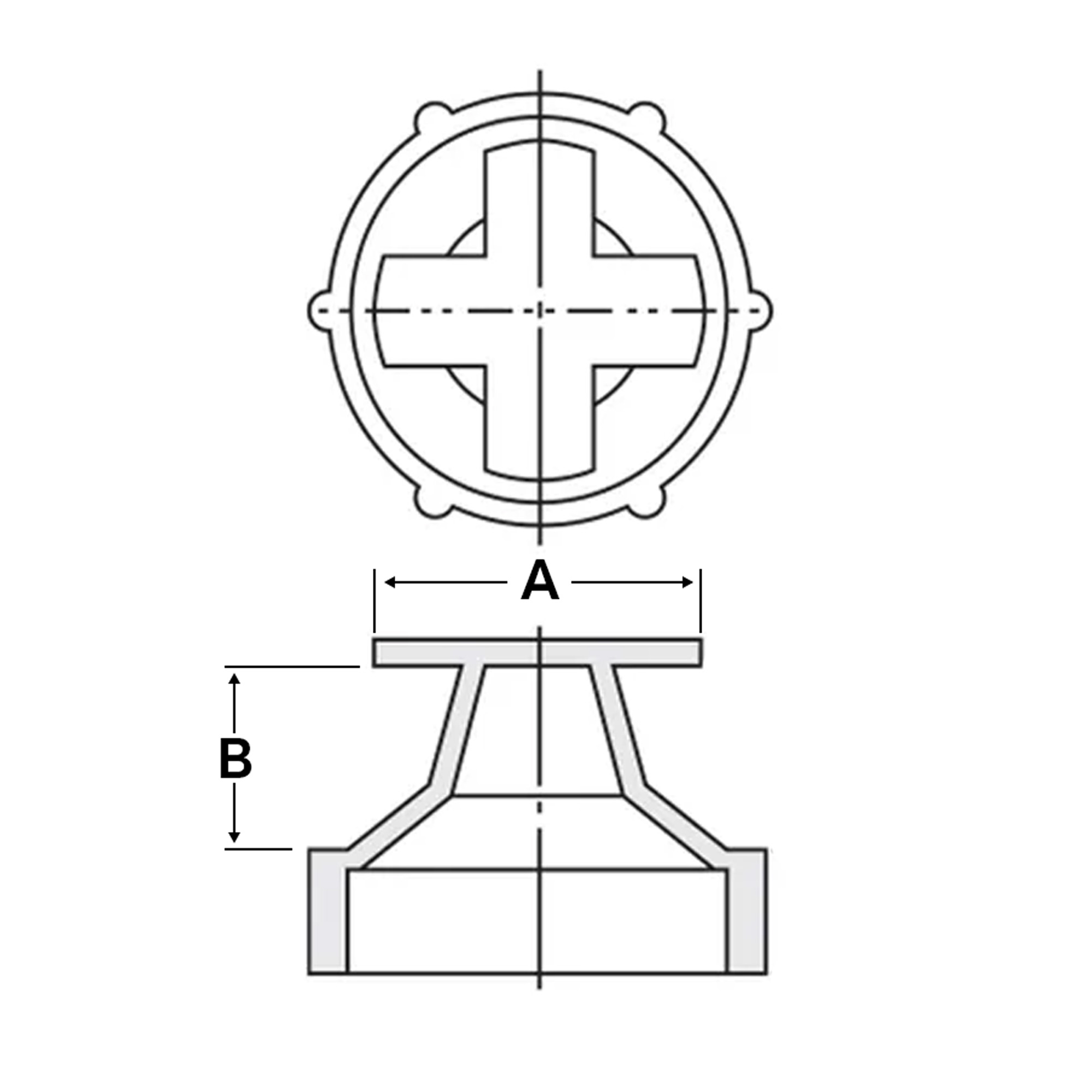

Consult the sizing chart below to determine the product version.
| Part No. | (NPT)Thread Size | (STD)Thread Size | Metric Thread Size | (BSP) Thread Size | A | B |
|---|---|---|---|---|---|---|
| FME-UN9995A | N/A | N/A | N/A | N/A | 0.42in (11mm) | 0.233in (6mm) |
| FME-UN9996A | 1/8in | 7/16in | M10 | 1/8in | 0.438in(11mm) | 0.24in(6mm) |
| FME-UN9997A | 1/4in | 9/16in | M14 | N/A | 0.575in(15mm) | 0.285in(7mm) |
| FME-UN9998A | N/A | 1/2in | M12 | 1/4in | 0.485in(12mm) | 0.325in(8mm) |
| FME-UN9763A | N/A | 3/4in | M16-20 | 3/8in | 0.78in (20mm) | 0.375in (10mm) |
| FME-UN9764A | N/A | 1in | M20-24 | 1/2in-5/8in | 0.99in (25mm) | 0.445in (11mm) |
| FME-UN9774A | 3/4in | 1 3/16in | M30 | 3/4in-7/8 | 1.24in (31mm) | 0.435in (11mm) |
| FME-UN9765A | N/A | 1 7/16in | M33-36 | 1in | 1.475in (37mm) | 0.445in (11mm) |
